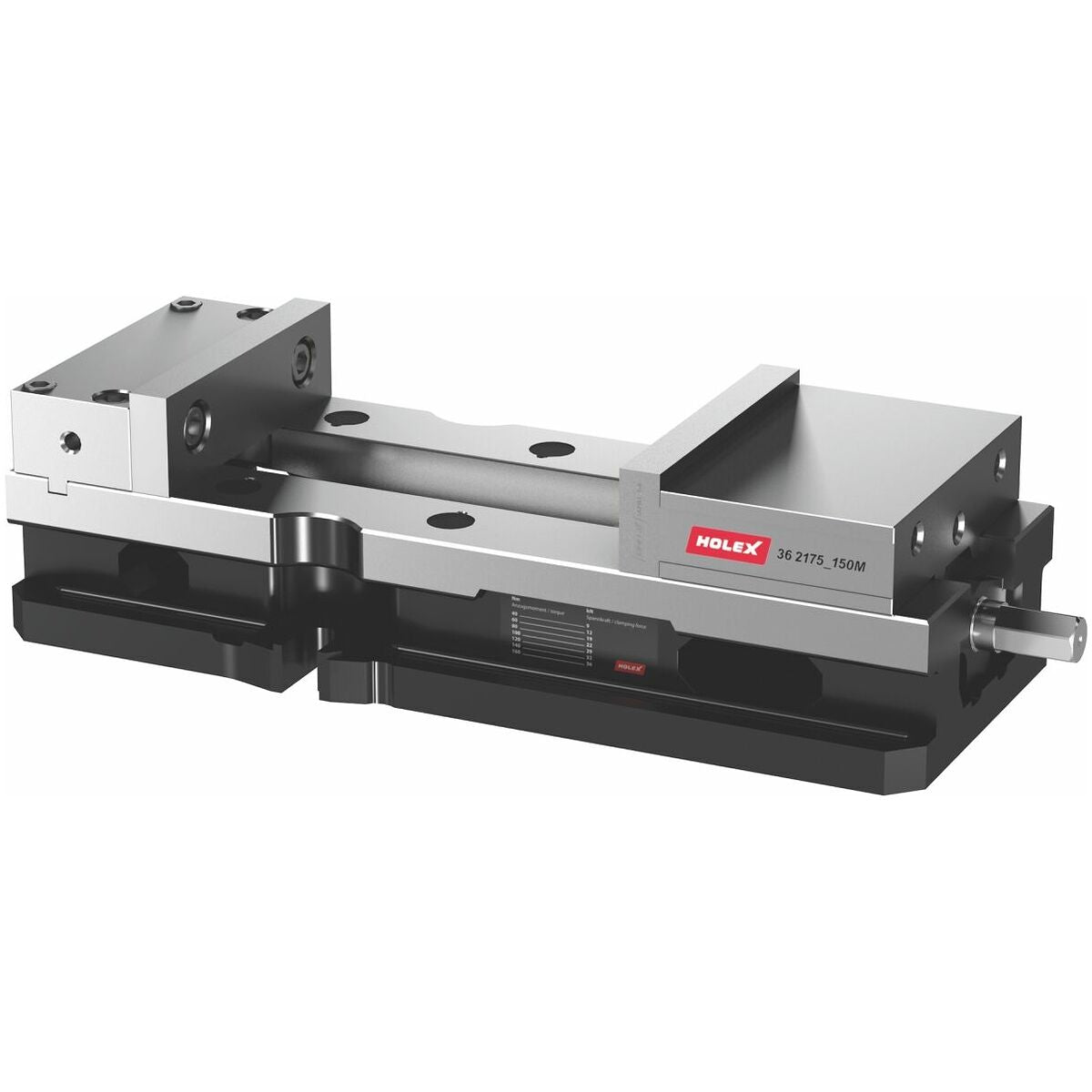

Eto cho máy phay Holex ngàm 150mm Width across flats AF 19mm

Version:

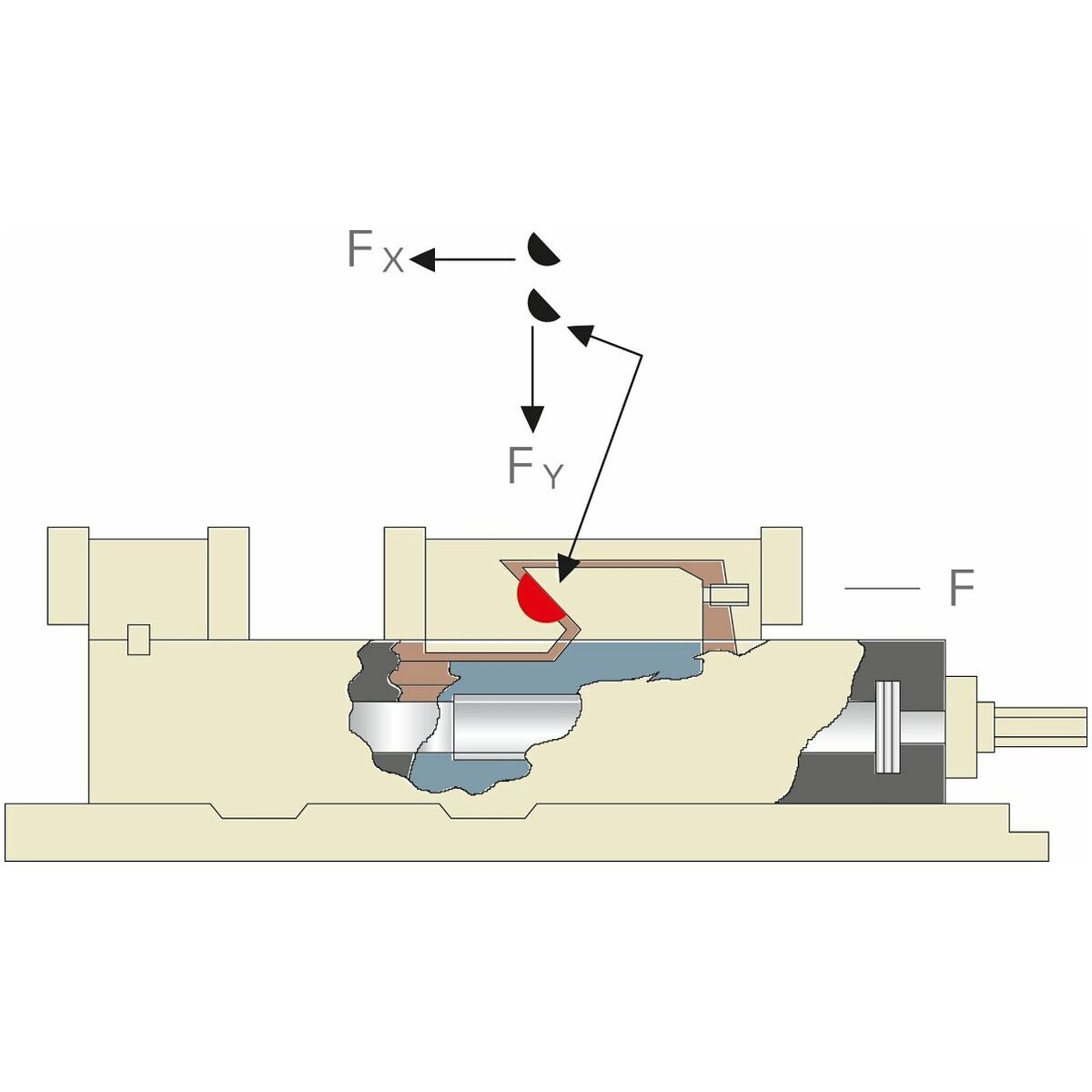

Sturdy base body of cast iron, slides and base area hardened. Cleaning holes in the base body for good flow of chips. Less component lift-off thanks to special transfer of force in the mobile jaw.

Application:

Versatile clamping unit for machining centres.

Supplied with:

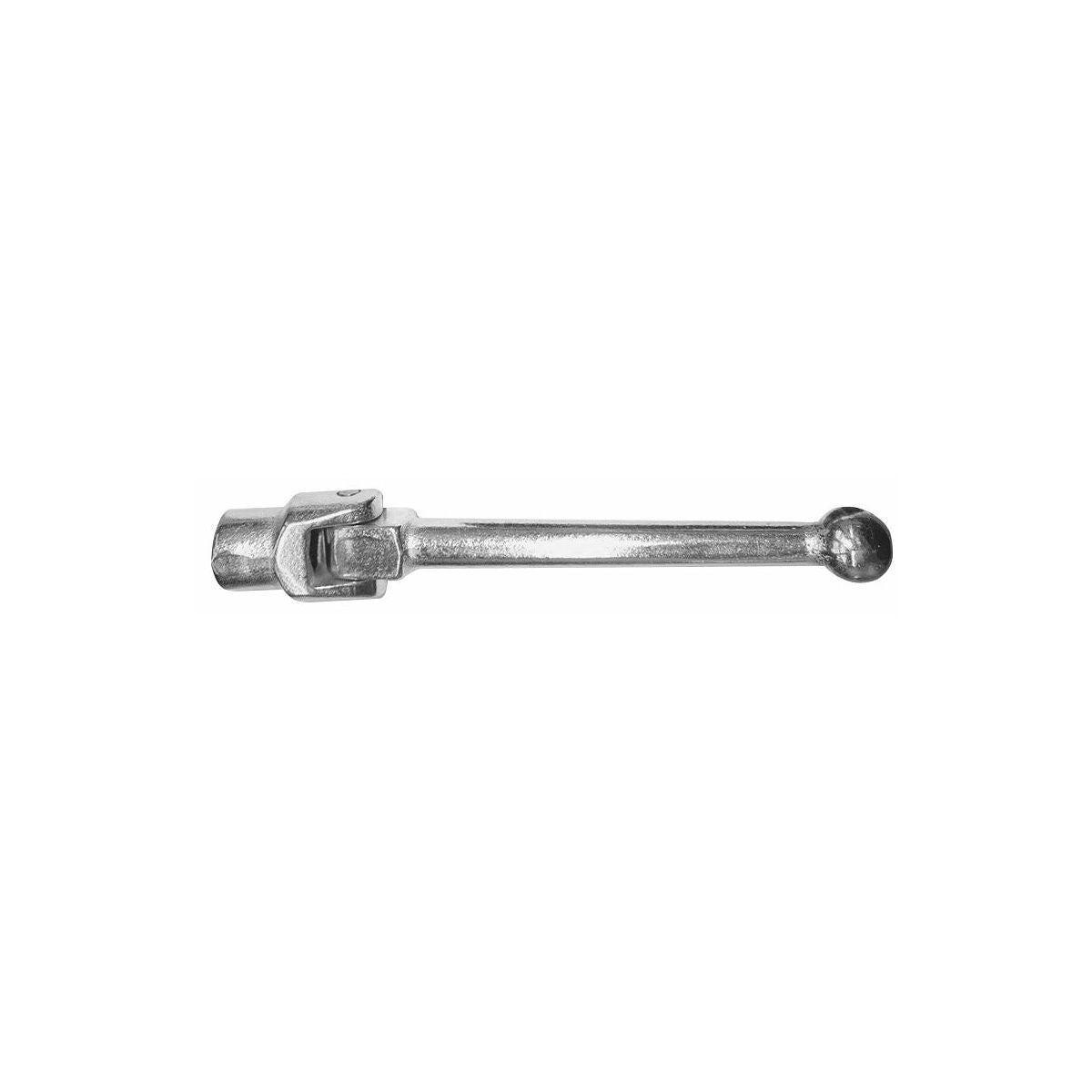

Incl. 2 pcs. top jaws, 2 pcs. front jaws No. 362181 and 1 pc. hand crank.

Optional extras:

Front jaws No. 362177 – 362183, crank No. 362190, spare-parts set No. 362199. Mounted with Tee bolts No. 375300 and aligned with tenons No. 375365.

Note:

Alignment dimensions not compatible with those of other manufacturers. Metric version – screws and threads in metric version, drive hexagon = 19 mm AF.

Thông tin kỹ thuật
