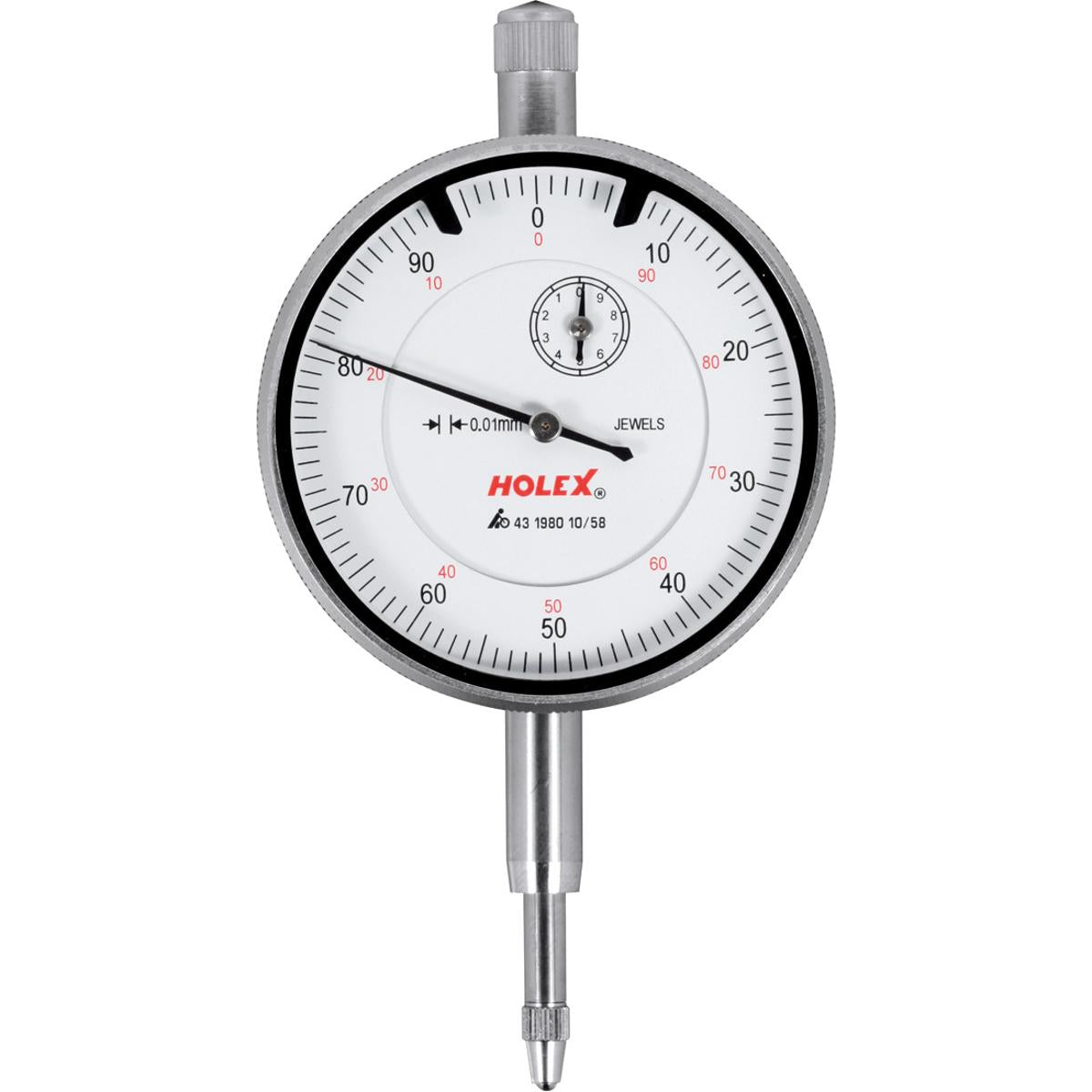

ĐỒNG HỒ SO CHÂN NHÚN 0.01 MM HOLEX 0-10MM

Version:

Dimensions to DIN EN ISO 463, issue June 2006. Precision dial indicators with metal housing, clamping shank ⌀ 8 mm h6, hardened and ground. Outer ring of dial face can be rotated to zero the dial. Central pointer for 1/100 mm reading, small pointer on sub-scale for 1 mm reading. Outer ring with 2 adjustable tolerance pointers.

Optional extras:

Special contact points No. 434900; 434910; 434915.

Thông tin kỹ thuật
