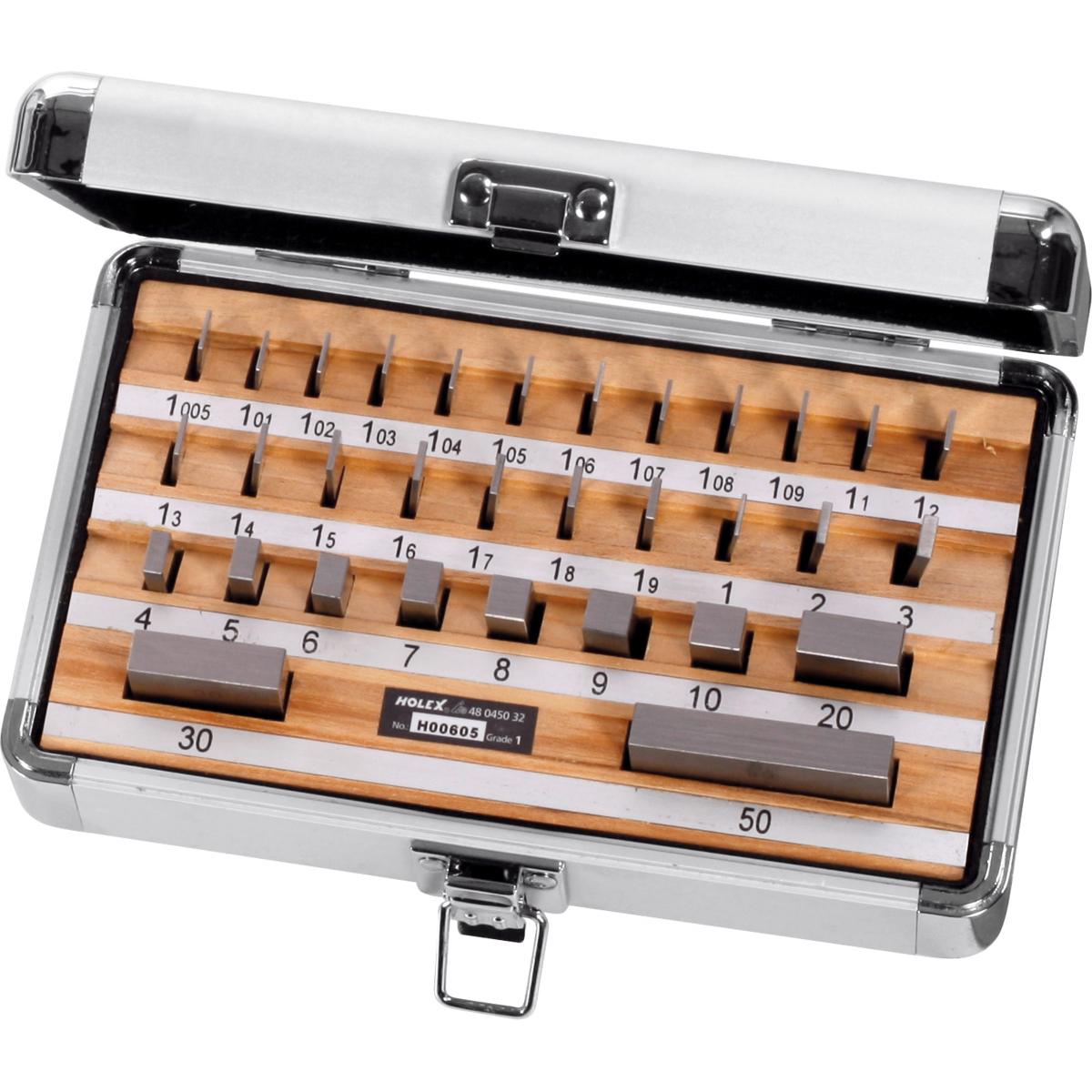

BỘ CĂN MẪU PHẲNG, CẤP CHÍNH XÁC 2 HOLEX 480500 32 CHI TIẾT

Version:

Made of aged special steel. Hardened (HRC 64 − 66) with slightly bevelled edges. Lapped gauge faces.

With free test certificate traceable to national standards:

Each gauge block is provided with its own unique identity number. The actual deviation from the nominal dimensions is recorded in the test certificate. The absolute actual dimension is therefore known. Tolerance class 2 workshop gauges for production.

Content:

1× each of size:

1. 000; 1. 005; 50 mmGraduation 0.

01:

10 pcs. 1. 01 − 1. 10 mmGraduation 0.

1:

9 pcs. 1. 20 − 2. 0 mmGraduation 1.

0:

8 pcs. 3. 0 − 10 mmGraduation 10.

0:

2 pcs. 20 − 30 mm
