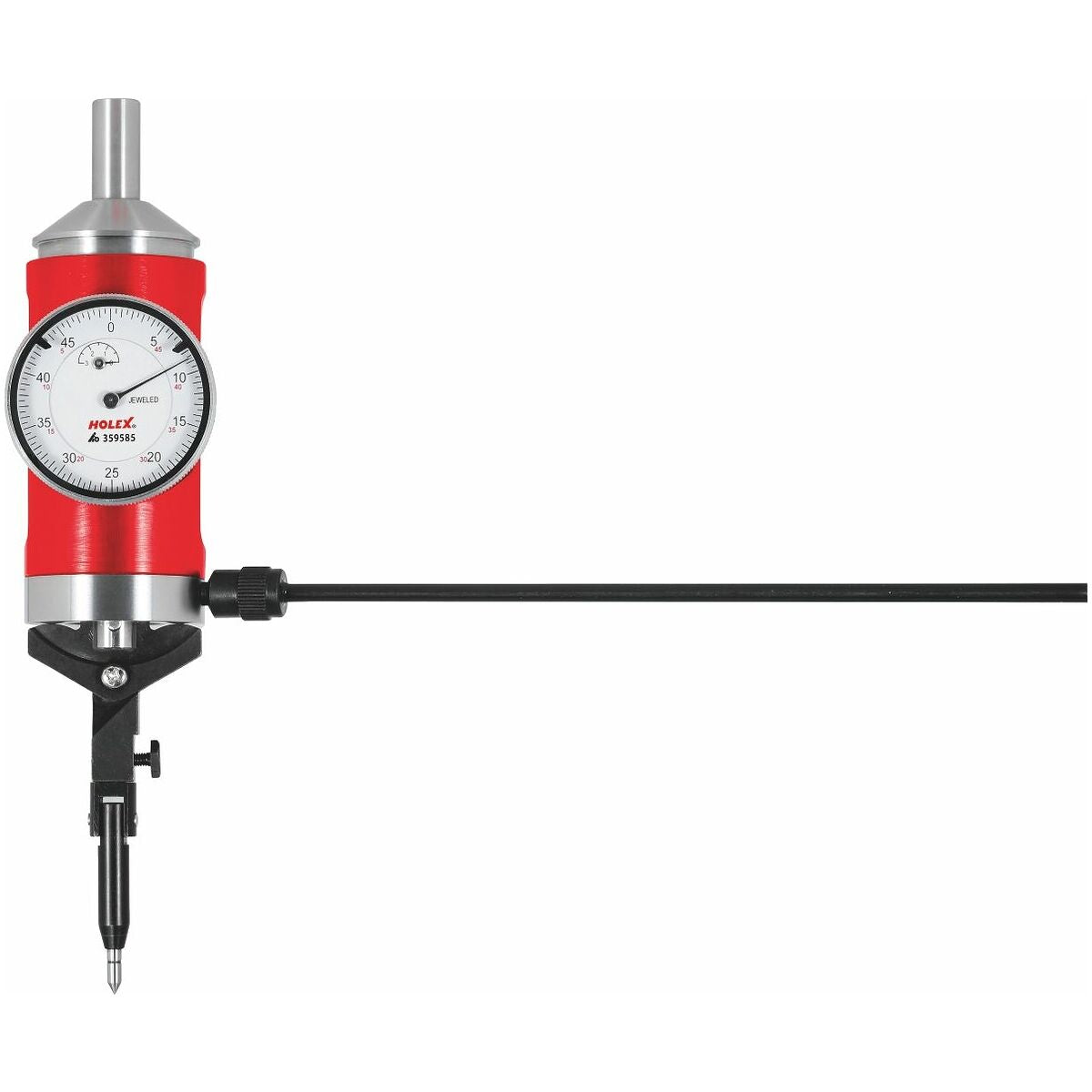

ĐỒNG HỒ DÒ TÂM HOLEX

Version:

Sturdy metal casing suitable for workshop use with dial indicator ⌀ 42 mm (scale graduation 0.
005 mm).
Holding rod can be fitted on the left or right.
Centre finder can be used vertically and horizontally.
Overall height without contact point 140 mm.
Recommended speed approx.
50 − 100 rpm.
Working range up to 300 mm.
Centring accuracy 0.
02 mm.

Application:

Determining the centres of bores and shafts.

Supplied with:

Centre finder including retaining bar, retaining magnet with connecting cord, 3 internal contact points, 3 curved external probes and 1 spring-loaded lathe centre (centre contact point).

Centre finder with holding rod, holding magnet with connection cord1x each internal contact point:

50 mm for ⌀ 3.

5 mm − 100 mm100 mm for ⌀ 50 mm − 200 mm150 mm for ⌀ 50 mm − 300 mm1x each curved external contact point:

50 mm for ⌀ 0.
0 mm − 100 mm100 mm for ⌀ 0.
0 mm − 200 mm150 mm for ⌀ 0.
0 mm − 300 mm1 sprung centre punch (centre contact point)
